The foundation is the most critical element of any structure, and its long-term health depends entirely on effective foundation waterproofing and moisture control. Traditional methods, such as liquid-applied coatings or asphalt dampproofing, often degrade, crack, or fail under hydrostatic pressure and soil movement. This leaves basements vulnerable to dampness, leaks, and the structural damage that follows.

The solution favored by leading builders and professionals is the Platon® Foundation Wrap, a revolutionary dimpled foundation membrane system. Platon is not merely a coating; it is a physical drainage plane and impermeable barrier that offers a definitive, long-term solution for a dry, healthy, and structurally sound basement. This detailed guide explores the superior benefits that make Platon the benchmark in modern foundation protection.

The Core Advantage: Air Gap Technology

for Drainage and Pressure Relief

The foundational principle of Platon Foundation Wrap is its unique, thermo-formed, dimpled design. Manufactured from rugged, High-Density Polyethylene (HDPE), the membrane's dimples face inward toward the foundation wall, creating a continuous, critical air gap approximately 5/16-inch thick.

This air gap is the key to Platon’s superior performance, addressing moisture in three critical ways that traditional coatings cannot match:

A. Physical Separation and Drainage Pathway

The HDPE sheet provides an impermeable vapor barrier, physically separating the damp, saturated backfill soil from the concrete wall. Any groundwater that penetrates the soil and reaches the membrane is channeled downward through the air gap to the weeping tile or perimeter drain system. This acts as a rapid, unimpeded drainage plane, ensuring that water is safely discharged away from the foundation before it can cause harm.

B. Hydrostatic Pressure Equalization

Hydrostatic pressure—the force of water pushing against the foundation wall—is the leading cause of structural damage and basement leaks. The continuous air gap created by the Platon Foundation Wrap equalizes the pressure on the exterior face of the foundation. By ensuring water can immediately flow down and away, the system relieves the immense stress that hydrostatic pressure places on the concrete, significantly extending the life of the wall.

C. Foundation Breathing and Drying

Concrete is a porous material that naturally holds and releases moisture. Traditional coatings trap moisture within the wall, leading to long-term issues like efflorescence, musty odors, and concrete degradation. The Platon air gap allows the foundation wall to "breathe" and dry out to the exterior. Moisture condensing on the back of the Platon membrane is funneled down to the footing drain. This ability to continuously vent moisture prevents accumulation within the wall, ensuring optimal concrete integrity.

Unparalleled Durability and Structural

Integrity

Foundation waterproofing must last the life of the structure. While liquid-applied treatments can degrade, crack, or peel, Platon Foundation Wrap offers exceptional physical toughness.

HDPE Resilience

The membrane is made from robust High-Density Polyethylene (HDPE), which is inherently resistant to chemical degradation from soil acids, alkalis, and salts. This durability ensures the membrane will not rot or break down, maintaining its protective capabilities for decades.

Crack-Bridging Capability

Foundations naturally shift and settle over time, leading to minor cracks (typically up to 1/4 inch). Traditional coatings break at these cracks, creating direct leak paths. The dimpled foundation membrane design of Platon allows it to permanently bridge cracks that exist or develop over time. The membrane remains flexible and continuous, ensuring the waterproof seal holds even if the wall moves or settles slightly.

Protection During Backfilling

The moment of truth for any foundation wrap is the backfilling process, where sharp rocks and heavy machinery can puncture or tear membranes. Platon's rugged, 24-mil-thick HDPE construction and thermo-formed dimples provide superior resistance to puncture and tear, safeguarding the foundation waterproofing integrity during construction.

Versatility Across All Foundation Types

The adaptability of Platon Foundation Wrap makes it a preferred solution for a wide range of building projects, from residential new builds to complex commercial retrofits.

• Poured Concrete Walls: Provides the optimal protection against lateral water pressure and vapor transmission.

• Concrete Block Walls: Easily bridges mortar joints and any surface irregularities common in block construction.

• Insulated Concrete Forms (ICF): Platon is ideal for use over ICFs, providing an essential drainage and protection layer that simplifies the waterproofing phase.

• Permanent Wood Foundations (PWF): It acts as a critical moisture barrier, separating the wood from direct contact with the damp soil.

• Existing Foundations (Retrofit): Platon can be effectively installed on existing foundation walls to solve chronic basement leakage and dampness issues, often offering a more reliable repair than interior drain tile systems alone.

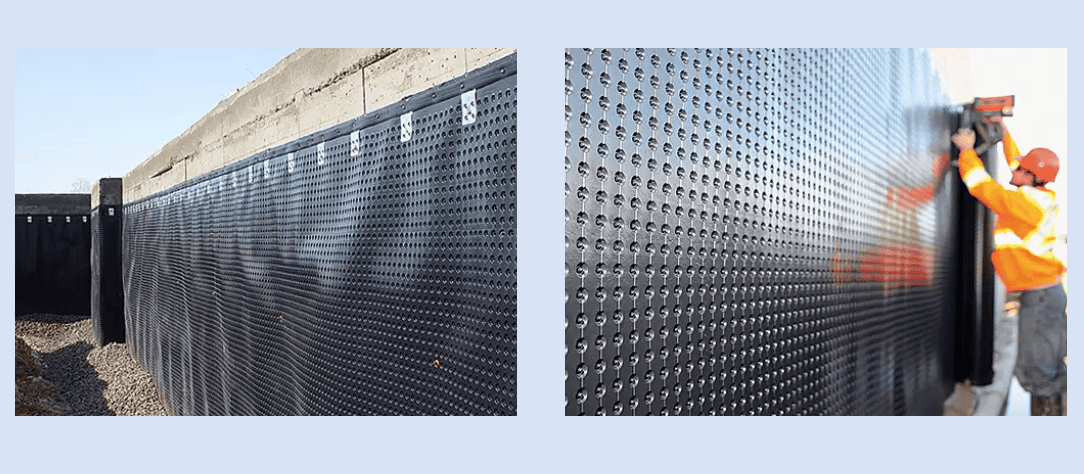

Faster, Easier, and All-Weather

Installation

For contractors, efficiency is key. Platon Foundation Wrap is engineered for straightforward, all-weather application, reducing labor costs and shortening construction timelines compared to multi-coat liquid systems that require specific temperature and cure times.

Mechanical Fastening System

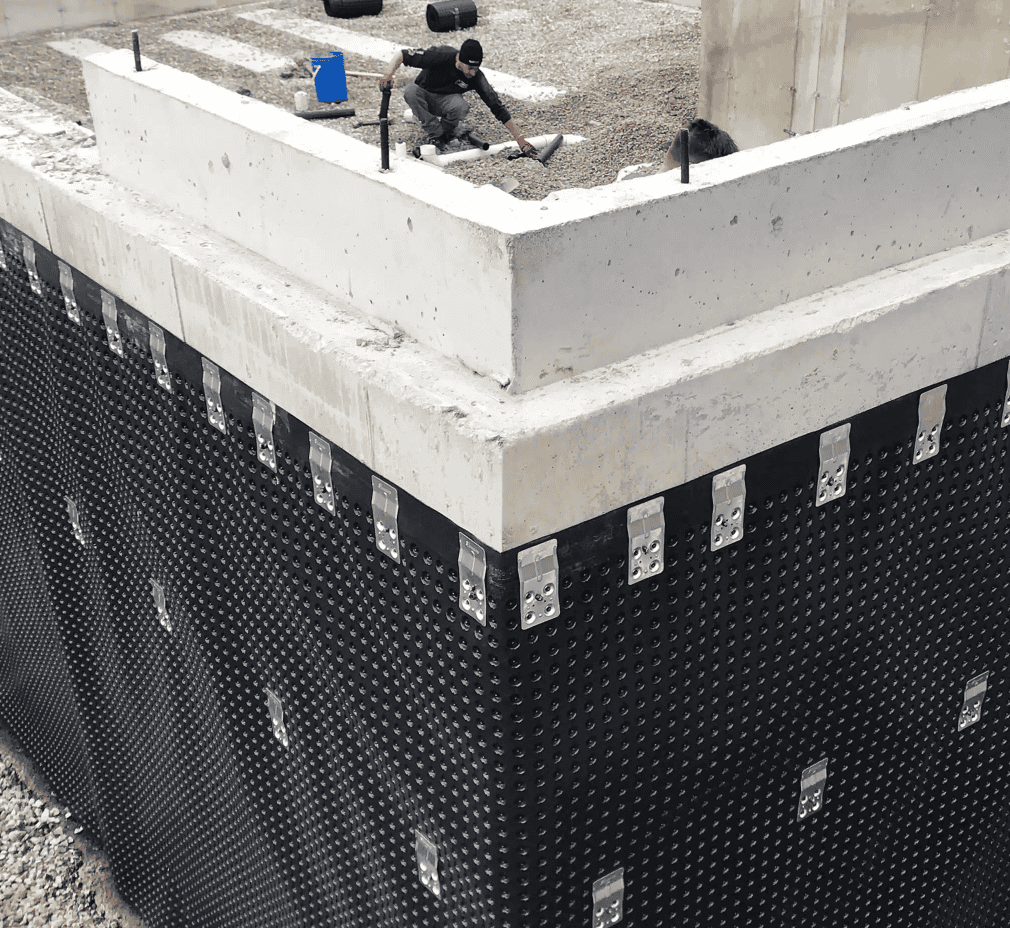

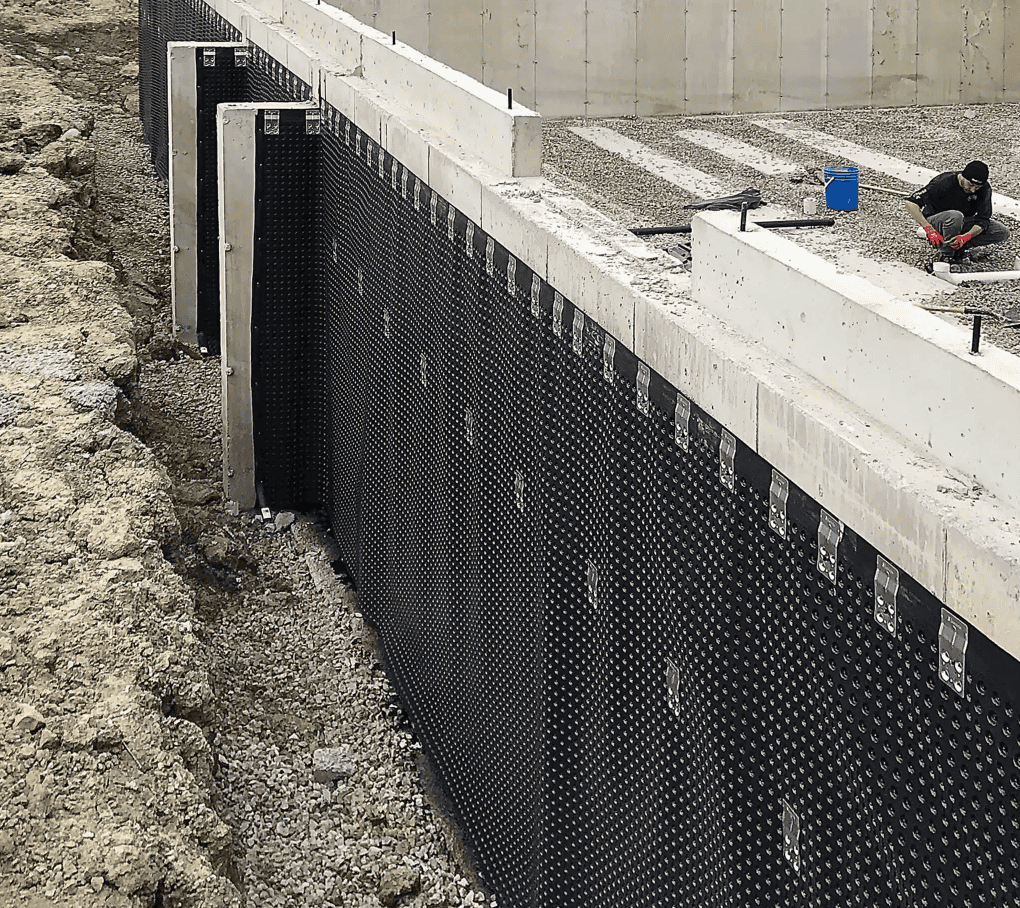

Platon is installed using a mechanical fastening system, typically employing Platon Speedclips or Platon Plugs. These patented fasteners securely engage the dimples and press the smooth top tab tight against the wall, creating a sealed termination line at the finished grade.

• No Cure Time: Since it’s a physical membrane, installation is immediate. There is no waiting for drying or curing, allowing backfilling to commence sooner.

• Cold-Weather Friendly: The robust HDPE material and mechanical fastening allow for installation year-round, regardless of temperature or humidity, a significant advantage in cold climates where building schedules can be tight.

• System Integration: When combined with Platon Moulding (to seal the top edge) and appropriate sealants, the system creates a comprehensive, continuous foundation waterproofing solution with minimal specialized tools required.

Enhanced Indoor Air Quality and

Basement Comfort

The impact of Platon Foundation Wrap extends beyond structural protection to significantly improve the indoor living environment.

A Drier, Healthier Basement

By blocking the capillary movement of water and continuously draining moisture vapor from the wall, Platon ensures a perpetually dry basement. This complete control over moisture intrusion eliminates the conditions necessary for mold, mildew, and musty odors to thrive, resulting in superior indoor air quality. This also makes the basement space truly usable for finished living areas.

Radon and Soil Gas Mitigation

While not a primary radon mitigation system, the continuous HDPE membrane acts as an additional, robust layer of protection against the infiltration of soil gases, including radon. When properly sealed, the Platon system contributes to a comprehensive strategy for preventing below-grade soil gas entry, further safeguarding the health of the building’s occupants.

Thermal Break for Basement Floors

Beyond foundation walls, Platon is also a renowned subfloor underlayment. Installed dimples down over concrete slabs, it creates the same protective air gap. This isolates finished flooring (laminate, hardwood, carpet) from cold, damp concrete, creating a thermal break and a vapor-proof barrier. The result is a warmer, dryer, and more comfortable basement floor that prevents moisture damage to expensive floor coverings.

The Definitive Solution for Foundation

Protection

The choice of foundation waterproofing is a long-term decision that impacts the entire building's stability and habitability. The Platon® Foundation Wrap provides a system that surpasses traditional methods by creating a physical air-gap drainage plane. This unique technology actively manages hydrostatic pressure, continuously drains water, and allows the concrete to dry out, offering comprehensive moisture control and structural assurance.

By investing in Platon, you are securing a product backed by decades of proven performance and industry certifications (such as CCMC and ICC-ES), guaranteeing a dry, healthy, and valuable foundation for the life of your structure.

Order Now at spycorbuilding.com to secure Platon® Foundation Wrap and all necessary installation accessories.

Frequently Asked Questions (FAQ)

What is the main difference between Platon® Foundation Wrap and traditional tar or spray coatings?

Traditional coatings are simply barrier materials that eventually crack and fail under hydrostatic pressure, trapping moisture within the wall. Platon Foundation Wrap is a dimpled foundation membrane that creates a physical air gap. This gap relieves hydrostatic pressure and acts as a dedicated drainage plane, actively channeling water away from the wall to the footer drain. It also allows the concrete to breathe and dry out.

Can Platon® Foundation Wrap be used on an existing foundation that leaks?

Yes. Platon Foundation Wrap is an excellent solution for retrofitting existing foundations. Once the foundation is excavated, Platon can be installed over the existing wall (after minor surface preparation), providing a highly effective, long-term solution for basement leakage and dampness.

Is Platon considered a vapor barrier?

Yes. The High-Density Polyethylene (HDPE) material of Platon is an impermeable vapor barrier, meaning it prevents the movement of moisture vapor from the soil toward the concrete wall. The key difference is that the dimpled design creates an air gap that allows moisture vapor within the wall itself to escape and drain, preventing it from being trapped.

How is Platon installed at the top edge?

The Platon Foundation Wrap is installed with a smooth tab at the top. This tab is sealed to the foundation wall, typically using Platon Speedclips or Speedstrips and a compatible caulk (or Platon Moulding). The seal prevents backfill material and dirt from entering the air gap, ensuring the drainage pathway remains clear and effective.

What accessories are required for a complete Platon installation?

To ensure a comprehensive foundation waterproofing system, you will need the Platon membrane rolls, fasteners (like Platon Speedclips or Plugs), appropriate nails or screws (based on the foundation type), a compatible sealant/caulk, and Platon Moulding strips for sealing the top termination edge against dirt ingress. All these components are available at Spycor Building Products.
